Overview:

This comprehensive hands-on course is designed to equip students with the micro soldering skills and diagnostic techniques needed to repair common logic board issues in various electronic devices. Leveraging the latest industry-grade equipment, students will gain practical experience working on modern devices such as iPads, iPhones, Samsung phones, and MacBooks.

Who Should Enroll:

This course is ideal for individuals with basic repair experience in disassembling and repairing mobile devices. Prior soldering experience is not required, as the course begins with foundational soldering skills and progresses to advanced micro soldering techniques.

Key Learning Outcomes:

Fundamental Soldering Skills: Learn the essential principles of soldering, including the tools, materials, and techniques needed for precise and effective work.

Micro Soldering Techniques: Develop advanced skills in micro soldering, focusing on fine-pitch components and complex circuit board repairs.

Schematic Reading and Diagnostics: Understand how to read and interpret electronic schematics, and use diagnostic tools to identify and troubleshoot logic board issues.

Common Repair Practices: Gain insights into repairing frequent problems encountered in repair shops, such as damaged connectors, faulty components, and broken traces.

Hands-On Troubleshooting: Engage in real-world troubleshooting exercises on live devices with actual issues. Students are encouraged to bring their own faulty devices to diagnose and repair during the course.

Versatile Repair Skills: Acquire techniques that can be applied to a wide range of issues beyond those covered in class, enhancing your ability to handle diverse repair scenarios.

Class hours are from 9:00 am to 5:00 pm each day

Scroll down for full course description.

Availability: In stock

$2,500.00

Email to a Friend

Qty:

-OR- -OR-

Details

Overview

This course teaches students micro soldering skills and knowledge to diagnose and repair common logic board issues. This is a hands on course where students work on current devices with the latest equipment. Students should have some repair experience taking apart and repairing mobile devices, but do not need any previous soldering experience as we begin by teaching the fundamentals of soldering and will progress into micro soldering reading schematics and repairing logic board issues. Students will learn how to repair common issues such as damaged FPC connectors, backlights, iPhone 6/6+ touch disease and other common issues seen by repair stores. After students learn the basics we'll spend time troubleshooting and working on live devices that have real problems that need to be fixed, students are encouraged to bring some of their own Apple devices with issues to troubleshoot and repair during the class. Students will also learn skills they can utilize to repair other issues that they may not have seen in class.

We've updated our course to include a full day of MacBook logic board troubleshooting and repair

Equipment/Tools Utilized in Class

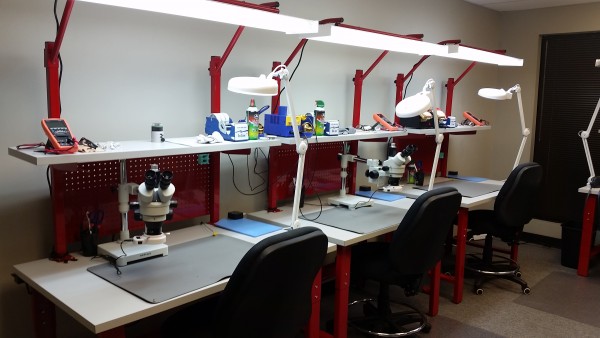

LCD TV with HD microscope cameras to display instructor microscope work
Stereo boom microscope with adjustable magnification
Multimeter
ZXW
Hakko soldering equipment

FM-203 Dual Port Soldering Station
Hot Tweezers
Micro Pencil
FX-951 & FX-888d - Available for comparison to other more expensive equipment

Hot air stations
Direct Current Power Supply

Repairs Taught and Topics Covered

Introduction to Soldering

Flux
Oxidation
Proper equipment
Types of solder

Micro soldering

How to use a micro iron or micro tweezers to replace components
Techniques to use hot air to replace components

Multimeter basics
Direct Current Power Supply

How to use properly
When to use and why

Electrical Components - identifying, replacing and testing

Filters
Diodes
Capacitors
Coils
IC chips

Charge port replacement
Short detection and types of shorts

Full shorts and partial shorts

Backlight repair

Components in the backlight circuit and how they work together
Rebuilding a backlight circuit
Most common failures in backlight circuits and how backlight failures vary

BGA Chip Removal and Replacement

Tristar replacement

FPC Connector Replacement

Soldering flex cables

Power Issues - Diagnosing & repairing common power issues
Charging Issues - Diagnosing & repairing charging issues
Replacing connectors
Liquid Damage Cleaning and Repair
Available resources for board views and schematics

Running jumpers and trace repair

Schematics

Reading and diagnosing schematics
ZXW

Water Damage Repair/Data Recovery Primer
